Start with battery voltage, then load-test it, then check charging voltage at 13.8–14.6V with the engine running. If the battery fails or charging stays outside range, isolate that first. Skipping that order can waste parts, miss a parasitic draw, and leave you with another no-start. This guide shows the shortest test sequence for battery, alternator, belt, ground, and parasitic drain faults.
What you’ll need
- Digital multimeter with DC volts and AC volts
- Load tester or conductance battery tester
- OBD2 code reader or diagnostic scanner with live data
- Basic hand tools for terminal clamps and ground straps
- Wire brush or terminal cleaner
- Flashlight for belt, terminal, and cable inspection
- Safety gloves and eye protection
Battery vs charging system fault tree
| Symptom | Resting voltage | Cranking voltage | Running voltage | AC ripple | Likely fault | Next test |
|---|---|---|---|---|---|---|
| Slow crank after sitting overnight | 12.6–12.8V, with 12.4V or less indicating partial charge (Clarios/Interstate); many battery testers classify 12.6V as fully charged on a 12V battery | Should stay at or above about 9.6V during cranking at 70°F/21°C (OEM service-info rule of thumb used by many manufacturers) | 13.8–14.6V on many systems, but follow OEM smart-charging targets when equipped | Normal: low, steady AC reading; Abnormal: elevated AC ripple or unstable waveform | Battery weak under load | Conductance or load test, then retest after a full charge |
| Battery light on, lights dim while driving | Below 12.2V after rest suggests low state of charge (Clarios/Interstate) | May drop sharply if battery is weak or connections are bad | Below 13.5V can indicate undercharging on conventional systems; smart-charging vehicles may command lower or variable output per OEM strategy | High ripple above normal baseline suggests diode or stator trouble | Alternator, regulator, belt, or connection issue | Inspect belt, check cable/ground voltage drop, then measure ripple |
| No-start after jump start, then dies again | 11.8V or lower after sitting usually indicates deep discharge | Below 9.6V during cranking points to a battery or connection problem | 13.8–14.6V if the system is charging normally, or OEM-specified variable charging on smart systems | Normal or high | Deep discharge, sulfation, or parasitic draw | Charge battery fully, then check parasitic draw and module sleep status |
| Charging voltage above normal | Any | Any | Above 15V on a conventional system can indicate overcharging; some OEM smart-charging systems can briefly exceed typical ranges during strategy changes, so verify with service data | Usually normal if the issue is regulation rather than diode failure | Voltage regulator fault or module command issue | Scan live data for generator command, battery sensor input, and field control |
| Battery drains overnight after sitting | Normal at first, then low the next morning | May crank slowly after a full charge | May test normal once running | Usually normal | Parasitic draw or a module staying awake | Perform parasitic draw test after the vehicle sleeps |
| Replace or clean when | Stop and fit this |
|---|---|
| Battery fails load or conductance test after full charge | Battery |
| Running voltage stays below 13.5V and ripple is high | Alternator |
| Belt is cracked, glazed, loose, or slipping | Belt |
| Corrosion, looseness, or voltage drop appears at the grounds | Clean and tighten grounds |
| Scan data shows commanded charging that does not match actual output on a smart-charging vehicle | Diagnose battery sensor, wiring, grounds, or module-controlled charging before replacing parts |
How do you test the battery first?
Check the battery with the car off after it has sat for several hours, then test it under cranking load. A healthy, fully charged 12V battery reads about 12.6–12.8V at rest (Clarios/Interstate), 12.4V or less is partially charged, and below 11.8V is deeply discharged. During cranking, about 9.6V or higher is the common minimum at 70°F/21°C used in OEM service info and battery-test guidance.

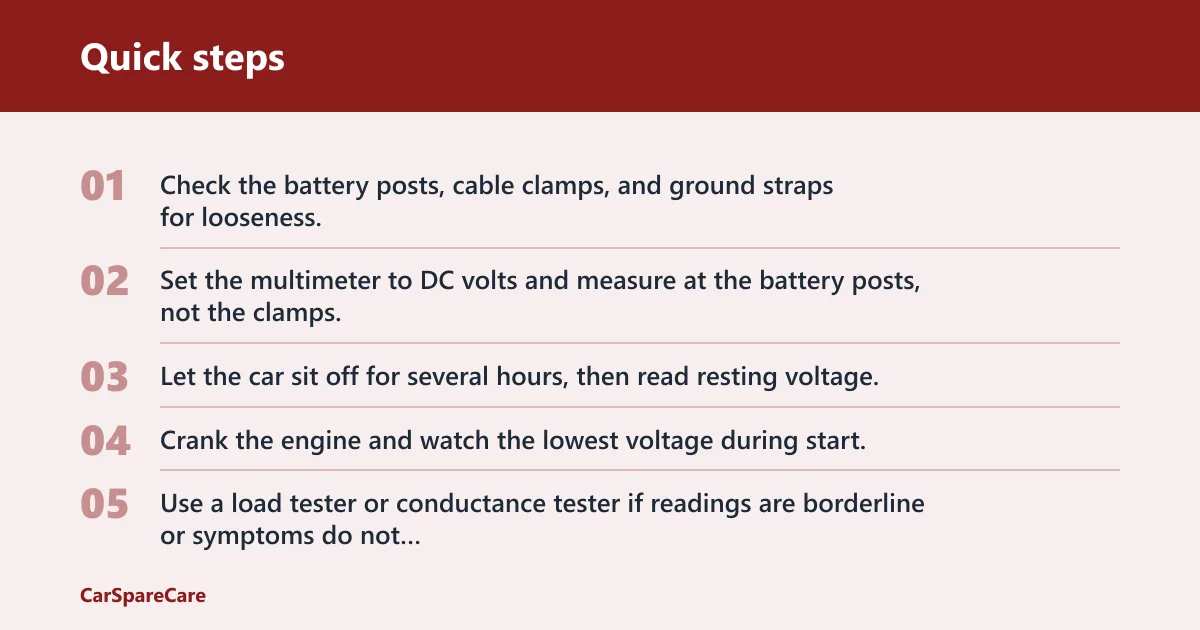

- Check the battery posts, cable clamps, and ground straps for looseness, white or green corrosion, damaged cable ends, and broken strands before any meter reading.
- Set the multimeter to DC volts and measure at the battery posts, not the clamps.
- Let the car sit off for several hours, then read resting voltage.
- Crank the engine and watch the lowest voltage during start.
- Use a load tester or conductance tester if readings are borderline or symptoms do not match voltage. Many reputable testers and OEM service guides use pass/fail decisions based on voltage, conductance, and available cranking amps rather than rest voltage alone.
Say your sedan shows 12.5V at rest, but the starter drags hard and the reading falls under 9.6V while cranking. That pattern points to poor battery delivery, not a charging fault. A battery can look acceptable at rest and still fail when asked for current.
If that didn’t work, try this next
- Charge the battery fully, then repeat the resting and cranking tests.
- Set the scanner to live data and compare battery voltage with the meter reading.
- If the battery still fails, replace it before condemning the alternator.
How do you test the alternator and ripple?
With the engine running, measure voltage at the battery and look for roughly 13.8–14.6V on many conventional systems, while smart-charging vehicles may vary by design and load. Then switch the meter to AC volts to check ripple, because diode or stator faults can leave the DC reading looking close enough while AC noise rises. For ripple, a low, steady reading is normal; a noticeably elevated reading needs further diagnosis.
- Start the engine and let it idle with headlights off.
- Measure DC voltage across the battery posts.
- Turn on headlights and rear defogger, then repeat the reading.
- Set the meter to AC volts and measure again across the battery posts.
- Use the scan tool to read charging voltage, battery status, and command data where supported.
High AC ripple with low or unstable charging voltage points toward alternator diode failure or a regulator fault. On a smart-charging vehicle, the battery voltage, charging command may be intentionally variable, so compare meter readings with generator command and battery sensor data before calling the alternator bad.
If that didn’t work: inspect the serpentine belt
- Inspect the serpentine belt for cracks, glazing, or slack.
- Check alternator wiring and the main charge cable for looseness.
- Look for charging-related codes such as P0562 (system voltage low), P0563 (system voltage high), P0620 (generator control circuit), P0621 (generator lamp/control), P0622 (generator field), or U-codes if the battery sensor or charging module is losing communication.
Can a bad ground or belt cause charging issues?
Yes. Loose terminals, corroded battery posts, weak chassis grounds, and a slipping serpentine belt can all create charging complaints that look like alternator trouble. Check these first, because they are faster to confirm than replacing major parts. Clean metal-to-metal contact matters.

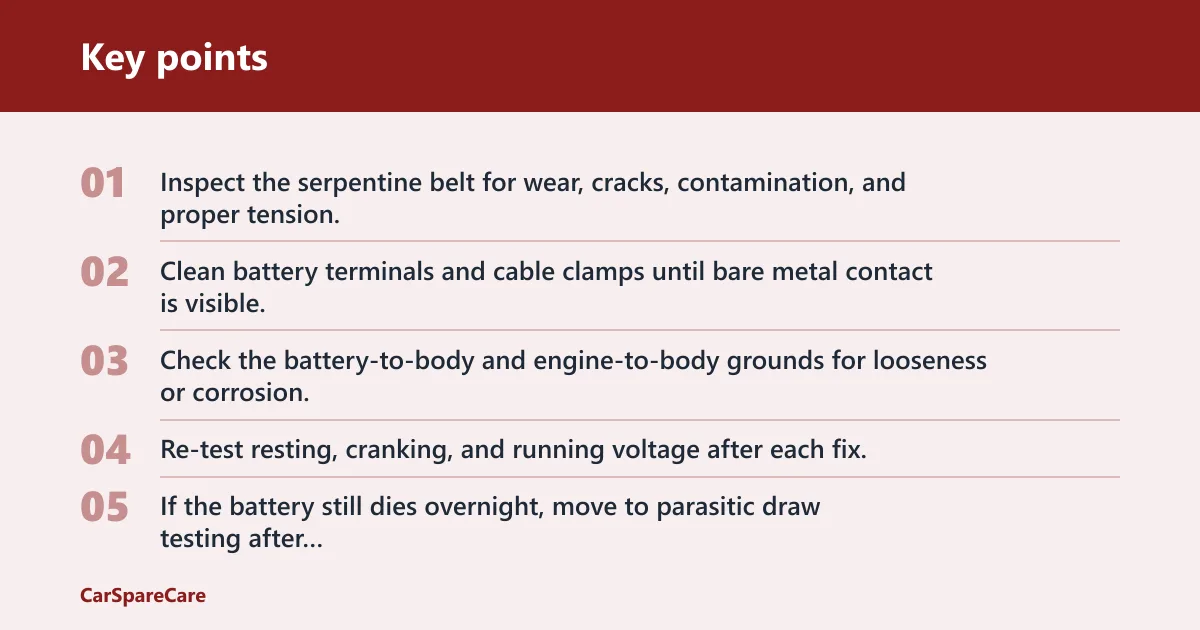

- Inspect the serpentine belt for wear, cracks, contamination, and proper tension.
- Clean battery terminals and cable clamps until bare metal contact is visible.
- Check the battery-to-body and engine-to-body grounds for looseness or corrosion.
- Re-test resting, cranking, and running voltage after each fix.
- If the battery still dies overnight, move to parasitic draw testing after charging-system checks pass.
A useful bay check is voltage drop. On one late-model SUV, the battery read 14.2V running, but a loaded negative-side voltage-drop test showed 0.41V between the battery negative post and the engine block, and the starter ground path was the real problem. On the positive side, more than about 0.2V on a clean cable path is already a clue worth chasing before parts replacement.
If that didn’t work: perform a parasitic draw test
- Perform a parasitic draw test with the car fully asleep.
- Check module wake-up data if the scanner supports sleep current monitoring.
- Use the fuse-pull method to isolate the circuit with the draw.
Common mistakes
- Replacing the alternator before checking the battery, belt, and grounds.
- Using only one voltage reading instead of resting, cranking, and running values.
- Trusting battery voltage alone without a load or conductance test.
- Ignoring scan-tool data on smart-charging or start-stop vehicles.
- Skipping parasitic draw diagnosis when the battery keeps dying overnight.
- Testing on the clamp instead of the battery post and reading through bad contact.
What to look for on a scan tool
On modern cars, the CAN bus and related modules may also report battery voltage, charging status, and command targets. That matters on smart-charging and start-stop systems, where the alternator may not sit at a fixed target all the time.
Capture live data for battery voltage, generator command or duty cycle if available, state of charge, and system load. If the scan tool shows a commanded voltage that differs from the meter reading, suspect control, wiring, or regulator issues rather than the battery alone. On many OEM systems, the battery current sensor and PCM/ECM strategy can intentionally lower charging voltage after start, then raise it under load.
How to replace the right part
Replace the battery when it fails resting, cranking, or conductance testing after a full charge. Replace the alternator when running voltage stays below 13.5V or above 15V on a conventional system, or when ripple points to diode trouble. Replace the belt when it is worn or slipping, and clean grounds when corrosion or looseness shows up.
AGM batteries, start-stop systems, and smart charging can use different target values and charge strategies than older cars. If the vehicle manual or scan data shows a different normal target, use that target instead of a generic rule. For these cars, a scanner is often as important as the meter.
Frequently asked questions
What is a car diagnostic?
A car diagnostic is a step-by-step check of symptoms, readings, and stored data so you can isolate the failing system before replacing parts. For battery and charging problems, that means voltage tests, a visual inspection, scanner data from the charging system and related modules, and a parasitic-draw check when the battery keeps going flat.
How do I test whether my car battery or alternator is bad?
Test the battery first at rest and during cranking. If the battery passes, start the engine and check for 13.8–14.6V at the battery posts on many conventional systems. If running voltage is below 13.5V, above 15V, or ripple is abnormal, move to the alternator and regulator. On smart-charging vehicles, compare the meter to scan data before replacing anything.
What voltage should a car battery read when the engine is off?
A healthy, fully charged 12V battery reads about 12.6–12.8V after sitting off for several hours. Below about 12.4V means partial state of charge, and below about 11.8V indicates a deep discharge and usually calls for charging and retesting before any replacement decision. Clarios and Interstate both use this general resting-voltage guidance.
What voltage should I see while the engine is running?
Typical charging voltage should be about 13.8–14.6V measured at the battery with the engine running on many older or conventional systems. Below about 13.5V may mean undercharging, while above about 15V may indicate overcharging. Smart-charging vehicles can vary, so compare with live scanner data and the OEM strategy instead of assuming one fixed target.
What codes can a scanner show for battery or charging problems?
Many scan tools also show live battery voltage, charging status, generator command, and module communication data. Those readings help separate a bad battery from a control issue or wiring fault.
